2SC5752 - NPN SILICON RF TRANSISTOR

Product Overview

NEC

📥 Download Datasheet

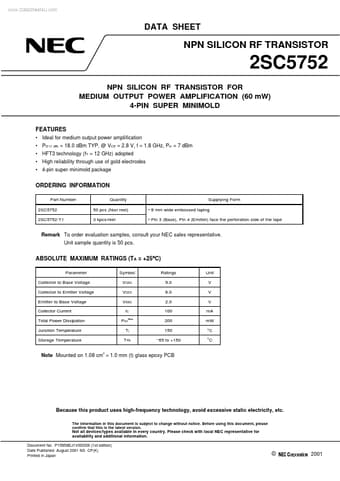

2SC5752 NPN SILICON RF TRANSISTOR by NEC - Datasheet Preview — Datasheet preview – 2SC5752

Datasheet Details

Part number	2SC5752
Manufacturer	NEC
File Size	116.56 KB
Description	NPN SILICON RF TRANSISTOR
Datasheet	2SC5752 Datasheet
Additional preview pages of the 2SC5752 datasheet.

Product details

Features

Ideal for medium output power amplification.
PO (1 dB) = 18.0 dBm TYP. @ VCE = 2.8 V, f = 1.8 GHz, Pin = 7 dBm.
HFT3 technology (fT = 12 GHz) adopted.
High reliability through use of gold electrodes.
4-pin super minimold package.
