2SC5757 - Silicon NPN Epitaxial Type Transistor

Product Overview

Hitachi Semiconductor

Part number	2SC5757
Manufacturer	Hitachi Semiconductor
File Size	128.45 KB
Description	Silicon NPN Epitaxial Type Transistor
Datasheet	2SC5757 Datasheet
Additional preview pages of the 2SC5757 datasheet.

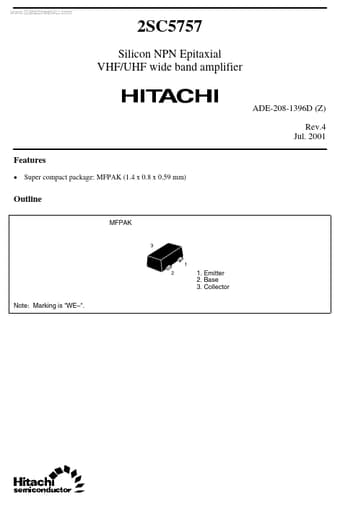

Super compact package: MFPAK (1.4 x 0.8 x 0.59 mm) Outline MFPAK 3 1 2 1. Emitter 2. Base 3. Collector Note: Marking is “WE.
“. 2SC5757 Absolute Maximum Ratings (Ta = 25 °C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC Pc Tj Tstg Ratings 10 3.5 1.5 80 80 150.
55 to +150 Unit V V V mA mW °C °C Electrical Characterist.
