HD74AC164 - Serial-In/ Parallel-Out Shift Register

HD74AC164 Description

HD74AC164/HD74ACT164 Serial-In, Parallel-Out Shift Register .
The HD74AC164/HD74ACT164 is a high-speed 8-bit serial-in/parallel-out shift register.

HD74AC164 Features

* an asynchronous Master Reset which clears the register, setting all outputs Low independent of the clock. Features
* Outputs Source/Sink 24 mA
* HD74ACT164 has TTL-Compatible Inputs Pin Arrangement A 1 B 2 Q0 3 Q1 4 Q2 5 Q3 6 GND 7 (Top view) 14 VCC 13 Q7 12 Q6 11 Q5 10 Q4 9 MR 8

📥 Download Datasheet

Preview of HD74AC164 PDF

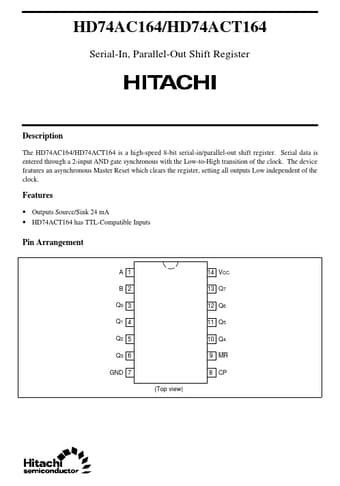

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74AC164
Manufacturer
Hitachi Semiconductor
File Size
59.34 KB
Datasheet
HD74AC164_HitachiSemiconductor.pdf
Description
Serial-In/ Parallel-Out Shift Register
