HD74AC123A Datasheet - Hitachi Semiconductor

HD74AC123A Dual Retriggerable Resettable Multivibrator

HD74AC123A Features

* retriggerable capability, complementary dc level triggering and overriding Direct Clear. When a circuit is in the quasi-stable (delay) state, another trigger applied to the inputs (per the Truth Table) will cause the delay period to start again, without disturbing the outputs. By repeating this proc

HD74AC123A_HitachiSemiconductor.pdf

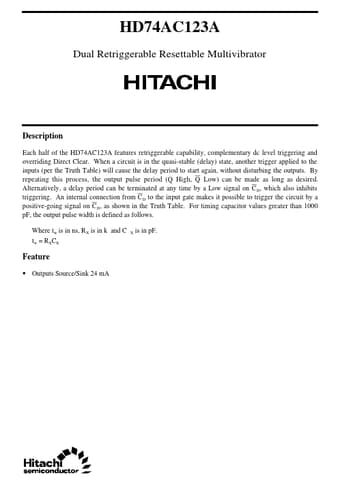

Preview of HD74AC123A PDF
HD74AC123A Datasheet Preview Page 2 HD74AC123A Datasheet Preview Page 3

Datasheet Details

Part number:

HD74AC123A

Manufacturer:

Hitachi Semiconductor

File Size:

50.18 KB

Description:

Dual retriggerable resettable multivibrator.
