HD74AC164 - Shift Register

Datasheet Summary

Description

The HD74AC164/HD74ACT164 is a high-speed 8-bit serial-in/parallel-out shift register.

Serial data is entered through a 2-input AND gate synchronous with the Low-to-High transition of the clock.

Features

  • an asynchronous Master Reset which clears the register, setting all outputs Low independent of the clock. Features.
  • Outputs Source/Sink 24 mA.
  • HD74ACT164 has TTL-Compatible Inputs.
  • Ordering Information Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD74AC164P DIP-14 pin DP-14, -14AV P.
  • HD74AC164FPEL SOP-14 pin (JEITA) FP-14DAV FP EL (2,000 pcs/reel) HD74AC164RPEL SOP-14 pin (JEDEC) FP-14DNV RP EL (2,500 pc.

📥 Download Datasheet

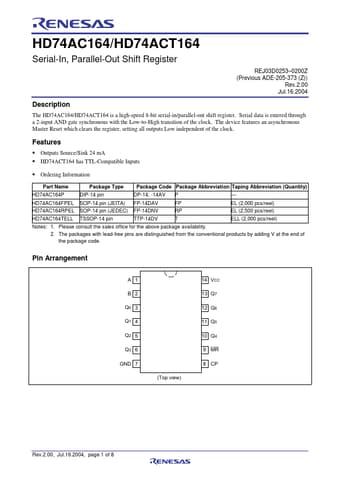

Datasheet preview – HD74AC164
