HD74AC153 - Dual 4-Input Multiplexer

Datasheet Summary

Description

The HD74AC153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section.

It can select two lines of data from four sources.

The two buffered outputs present data in the true (noninverted) form.

Features

  • Outputs Source/Sink 24 mA.
  • Ordering Information Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD74AC153FPEL SOP-16 pin (JEITA) FP-16DAV FP EL (2,000 pcs/reel) HD74AC153RPEL SOP-16 pin (JEDEC) FP-16DNV RP EL (2,500 pcs/reel) Notes: 1. Please consult the sales office for the above package availability. 2. The packages with lead-free pins are distinguished from the conventional products by adding V at the end of the package cod.

📥 Download Datasheet

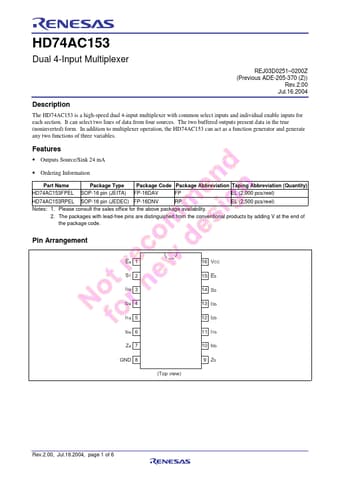

Datasheet preview – HD74AC153

Datasheet Details

Part number HD74AC153
Manufacturer Renesas
File Size 192.24 KB
Description Dual 4-Input Multiplexer
Datasheet download datasheet HD74AC153 Datasheet
Additional preview pages of the HD74AC153 datasheet.

📁 Similar Datasheet

  • HD74AC153 - Dual 4-Input Multiplexer (Hitachi Semiconductor)
  • HD74AC157 - Quad 2-Input Multiplexer (Hitachi Semiconductor)
  • HD74AC158 - Quad 2-Input Multiplexer (Hitachi Semiconductor)
  • HD74AC107 - Dual JK Flip-Flop (with Separate Clear and Clock) (Hitachi Semiconductor)
  • HD74AC112 - Dual JK Negative Edge-Triggered Flip-Flop (Hitachi Semiconductor)
  • HD74AC123A - Dual Retriggerable Resettable Multivibrator (Hitachi Semiconductor)
  • HD74AC125 - Quad Buffer/Line Driver with 3-State Output (Hitachi Semiconductor)
  • HD74AC126 - Quad Buffer/Line Driver with 3-State Output (Hitachi Semiconductor)
  • HD74AC138 - 1-of-8 Decoder/Demultiplexer (Hitachi Semiconductor)
  • HD74AC139 - Dual 1-of-4 Decoder/Demultiplexer (Hitachi Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text
HD74AC153 Dual 4-Input Multiplexer REJ03D0251–0200Z (Previous ADE-205-370 (Z)) Rev.2.00 Jul.16.2004 Description The HD74AC153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources. The two buffered outputs present data in the true (noninverted) form. In addition to multiplexer operation, the HD74AC153 can act as a function generator and generate any two functions of three variables. Features • Outputs Source/Sink 24 mA • Ordering Information Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD74AC153FPEL SOP-16 pin (JEITA) FP-16DAV FP EL (2,000 pcs/reel) HD74AC153RPEL SOP-16 pin (JEDEC) FP-16DNV RP EL (2,500 pcs/reel) Notes: 1.
