HD74AC165 - Parallel-Load 8-bit Shift Register

Product Overview

Hitachi Semiconductor

Datasheet Details

Part number	HD74AC165
Manufacturer	Hitachi Semiconductor
File Size	69.01 KB
Description	Parallel-Load 8-bit Shift Register
Datasheet	HD74AC165 Datasheet
Additional preview pages of the HD74AC165 datasheet.

Product details

Description

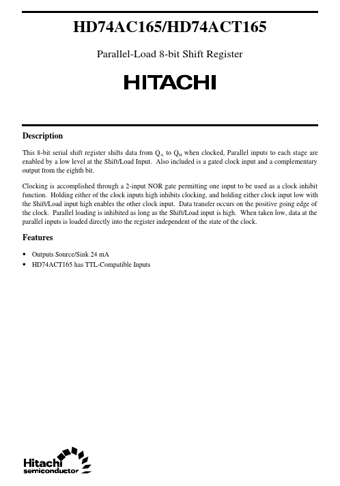

This 8-bit serial shift register shifts data from Q A to QH when clocked, Parallel inputs to each stage are enabled by a low level at the Shift/Load Input.

Features

Outputs Source/Sink 24 mA.
HD74ACT165 has TTL-Compatible Inputs HD74AC165/HD74ACT165 Pin Arrangement SL 1 CP 2 E 3 Parallel Inputs F 4 G 5 H 6 QH 7 GND 8 (Top view) 16 VCC Clock 15 Inhibit 14 D 13 C 12 B 11 A 10 SI 9 QH Parallel Inputs Logic Symbol 15 11 12 13 14 3 4 5 6 1 2 10 Clock Inhibit SL CP SI A B C D E F G H QH QH 9 7 Pin Names A to H SI CP SL Clock Inhibit QH, QH Parallel Inputs Serial Input Clock Input Shift Load Clock Inhibit Outputs 2 HD74AC165/.
