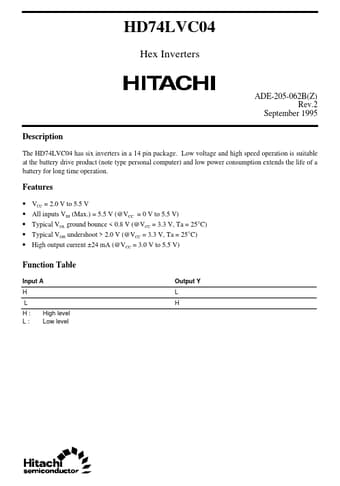

HD74LVC04 Datasheet, Inverters, Hitachi Semiconductor

HD74LVC04 Features

• Inverters
• VCC = 2.0 V to 5.5 V All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Ty

PDF File Details

Part number:

HD74LVC04

Manufacturer:

Hitachi Semiconductor

File Size:

34.93kb

Download:

📄 Datasheet

Description:

Hex inverters. The HD74LVC04 has six inverters in a 14 pin package. Low voltage and high speed operation is suitable at the battery drive product (n
