HD74LVC138

3-to-8-line Decoder / Demultiplexer

HD74LVC138 Features

* VCC = 2.0 V to 5.5 V All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C) High output current ±24 mA (@VCC = 3.0 V to 5.5 V) HD74LVC1

HD74LVC138 General Description

The HD74LVC138 has three binary select inputs in a 16 pin package. If the device is enabled these inputs determine which one of the eight normally high outputs will go low. Two active low and one active high enables are provided to ease the cascading of decoders. Low voltage and high speed operation.

HD74LVC138 Datasheet (37.83 KB)

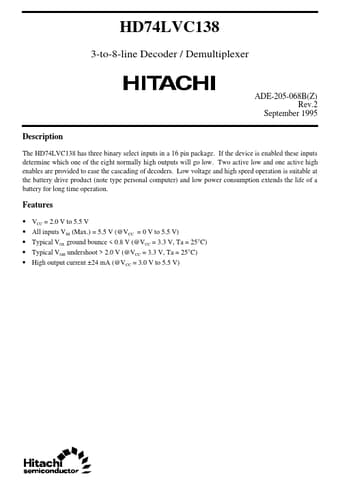

Preview of HD74LVC138 PDF

Datasheet Details

Part number:

HD74LVC138

Manufacturer:

Hitachi Semiconductor

File Size:

37.83 KB

Description:

3-to-8-line decoder / demultiplexer.
