HD74LVC1G02 - 2-input NOR Gate

Datasheet Summary

Description

The HD74LVC1G02 has two

input NOR gate in a 5-pin package.

Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.

Features

  • The basic gate function is lined up as renesas uni logic series.
  • Supply voltage range : 1.65 to 5.5 V Operating temperature range:.
  • 40 to +85°C.
  • All inputs: VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs: VO (Max. ) = 5.5 V (@VCC = 0 V).
  • Output current: ±4 mA (@VCC = 1.65 V) ±8 mA (@VCC = 2.3 V) ±24 mA (@VCC = 3.0 V) ±32 mA (@VCC = 4.5 V).
  • Ordering Information Part Name HD74LVC1G02CPE HD74LVC1G02CLE Package Type WCSP-5 pin Package Code.

📥 Download Datasheet

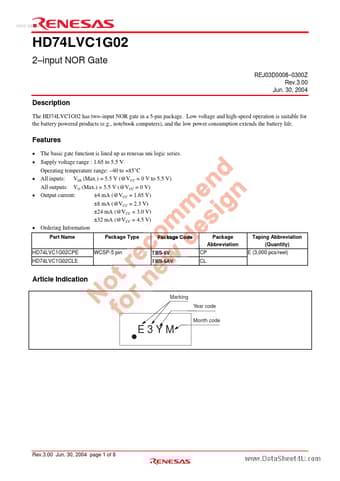

Datasheet preview – HD74LVC1G02

Datasheet Details

Part number HD74LVC1G02
Manufacturer Renesas Technology
File Size 2.15 MB
Description 2-input NOR Gate
Datasheet download datasheet HD74LVC1G02 Datasheet
Additional preview pages of the HD74LVC1G02 datasheet.

📁 Similar Datasheet

  • HD74LVC125A - Quad. Bus Buffer Gates with 3-state Outputs (Hitachi Semiconductor)
  • HD74LVC125A - Quad. Bus Buffer Gates (Renesas)
  • HD74LVC138 - 3-to-8-line Decoder / Demultiplexer (Hitachi Semiconductor)
  • HD74LVC138 - 3-to-8-line Decoder / Demultiplexer (Renesas)
  • HD74LVC139 - Dual 2-to-4-line Decoders / Demultiplexers (Hitachi Semiconductor)
  • HD74LVC139 - Dual 2-to-4-line Decoders / Demultiplexers (Renesas)
  • HD74LVC14 - Hex Schmitt-trigger Inverters (Hitachi Semiconductor)
  • HD74LVC14 - Hex Schmitt-trigger Inverters (Renesas)
  • HD74LVC16240A - 16-bit Buffers / Line Drivers with 3-state Outputs (Hitachi Semiconductor)
  • HD74LVC16240A - 16-bit Buffers / Line Drivers (Renesas)
Other Datasheets by Renesas Technology

Full PDF Text Transcription

Click to expand full text
www.datasheet4u.com HD74LVC1G02 2–input NOR Gate REJ03D0008–0300Z Rev.3.00 Jun. 30, 2004 Description The HD74LVC1G02 has two–input NOR gate in a 5-pin package. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life. Features • The basic gate function is lined up as renesas uni logic series. • Supply voltage range : 1.65 to 5.5 V Operating temperature range: –40 to +85°C • All inputs: VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs: VO (Max.) = 5.5 V (@VCC = 0 V) • Output current: ±4 mA (@VCC = 1.65 V) ±8 mA (@VCC = 2.3 V) ±24 mA (@VCC = 3.0 V) ±32 mA (@VCC = 4.
