HD74lVC16244A - 16-bit Buffers / Line Drivers with 3-state Outputs

Datasheet Summary

Description

The HD74LVC16244A has sixteen line drivers with three state outputs in a 48 pin package.

This device is a non inverting buffer and has two active low enables (1 G to 4G).

Each enable independently controls four buffers.

Features

  • VCC = 2.0 V to 5.5 V All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VOUT (Max. ) = 5.5 V (@VCC = 0 V or output off state) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C) High output current ±24 mA (@VCC = 3.0 V to 5.5 V) Function Table Inputs G H L L H: L: X: Z: High level Low level Immaterial High impedance A X H L Output Y Z H L HD74LVC16244A Pin Ar.

📥 Download Datasheet

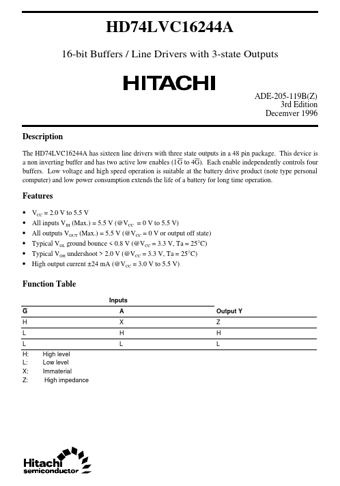

Datasheet preview – HD74lVC16244A

Datasheet Details

Part number HD74lVC16244A
Manufacturer Hitachi Semiconductor
File Size 50.31 KB
Description 16-bit Buffers / Line Drivers with 3-state Outputs
Datasheet download datasheet HD74lVC16244A Datasheet
Additional preview pages of the HD74lVC16244A datasheet.

📁 Similar Datasheet

Other Datasheets by Hitachi Semiconductor
  • HD74LVC16240A - 16-bit Buffers / Line Drivers with 3-state Outputs
  • HD74LVC16241 - 16-bit Buffers / Line Drivers with 3-state Outputs
  • HD74LVC16245A - 16-bit Bus Transceivers with 3-state Outputs
  • HD74LVC16373A - 16-bit D-type Transparent Latches with 3-state Outputs
  • HD74LVC16374A - 16-bit D-type Flip Flops with 3-state Outputs
  • HD74LVC16540 - 16-bit Buffers / Line Drivers with 3-state Outputs
  • HD74LVC16541 - 16-bit Buffers / Line Drivers with 3-state Outputs
  • HD74LVC125A - Quad. Bus Buffer Gates with 3-state Outputs

Full PDF Text Transcription

Click to expand full text
HD74LVC16244A 16-bit Buffers / Line Drivers with 3-state Outputs ADE-205-119B(Z) 3rd Edition Decemver 1996 Description The HD74LVC16244A has sixteen line drivers with three state outputs in a 48 pin package. This device is a non inverting buffer and has two active low enables (1 G to 4G). Each enable independently controls four buffers. Low voltage and high speed operation is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation. Features • • • • • • VCC = 2.0 V to 5.5 V All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VOUT (Max.) = 5.5 V (@VCC = 0 V or output off state) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.0 V (@VCC = 3.
