HD74LVC14 Datasheet, Inverters, Renesas

✔ HD74LVC14 Features

VCC = 2.0 V to 5.5 V
All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
Typical VOH undershoot > 2.0

PDF File Details

Renesas manufacturer logo

Part number:

HD74LVC14

Manufacturer:

Renesas ↗

File Size:

186.63kb

Download:

📄 Datasheet

Description:

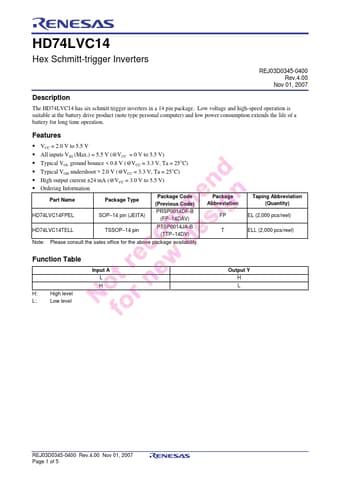

Hex schmitt-trigger inverters. The HD74LVC14 has six schmitt trigger inverters in a 14 pin package. Low voltage and high-speed operation is suitable at the battery

📥 Download PDF (186.63kb)
