HD74LVC16245A

16-bit Bus Transceivers with 3-state Outputs

HD74LVC16245A Features

* VCC = 2.0 V to 5.5 V All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VOUT (Max.) = 5.5 V (@VCC = 0 V or output off state) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.0 V (@VCC = 3.3

HD74LVC16245A General Description

The HD74LVC16245A has sixteen two direction buffers, for the fittest at two direction bus lines with three state outputs. A direction control input, DIR. When DIR is high, data flows from the A inputs to the B outputs. When DIR is high, data flows from the B inputs to the A outputs. When enable inpu.

HD74LVC16245A Datasheet (56.64 KB)

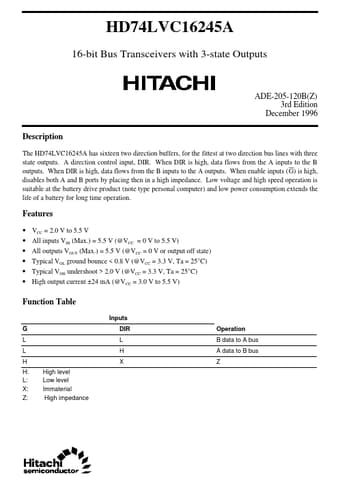

Preview of HD74LVC16245A PDF

Datasheet Details

Part number:

HD74LVC16245A

Manufacturer:

Hitachi Semiconductor

File Size:

56.64 KB

Description:

16-bit bus transceivers with 3-state outputs.
