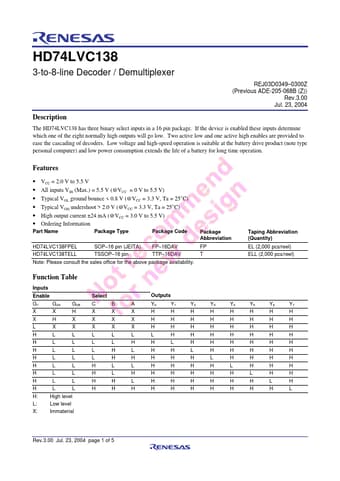

HD74LVC138 Datasheet, Demultiplexer, Renesas

✔ HD74LVC138 Features

VCC = 2.0 V to 5.5 V
All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
Typical VOH undershoot >

PDF File Details

Renesas manufacturer logo

Part number:

HD74LVC138

Manufacturer:

Renesas ↗

File Size:

171.67kb

Download:

📄 Datasheet

Description:

3-to-8-line decoder / demultiplexer. The HD74LVC138 has three binary select inputs in a 16 pin package. If the device is enabled these inputs determine which one of the e
