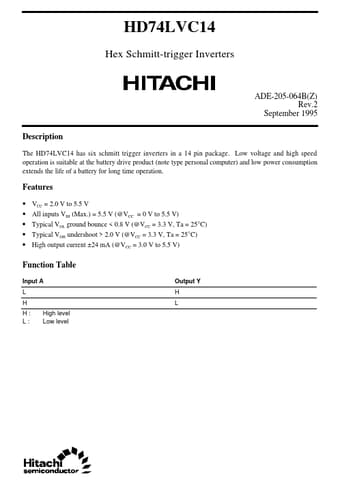

HD74LVC14 Datasheet, Inverters, Hitachi Semiconductor

✔ HD74LVC14 Features

VCC = 2.0 V to 5.5 V All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.

PDF File Details

Hitachi Semiconductor manufacturer logo

Part number:

HD74LVC14

Manufacturer:

Hitachi Semiconductor

File Size:

36.48kb

Download:

📄 Datasheet

Description:

Hex schmitt-trigger inverters. The HD74LVC14 has six schmitt trigger inverters in a 14 pin package. Low voltage and high speed operation is suitable at the battery

📥 Download PDF (36.48kb)
