HD74LVC1G04 - Inverter

Datasheet Summary

Description

The HD74LVC1G04 has an inverter in a 5-pin package.

Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.

Features

  • The basic gate function is lined up as Renesas uni logic series.
  • Supply voltage range : 1.65 to 5.5 V Operating temperature range:.
  • 40 to +85°C.
  • All inputs: VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs: VO (Max. ) = 5.5 V (@VCC = 0 V).
  • Output current: ±4 mA (@VCC = 1.65 V) ±8 mA (@VCC = 2.3 V) ±24 mA (@VCC = 3.0 V) ±32 mA (@VCC = 4.5 V).
  • Ordering Information www. DataSheet4U. com Part Name HD74LVC1G04CPE HD74LVC1G04CLE Package Type WC.

📥 Download Datasheet

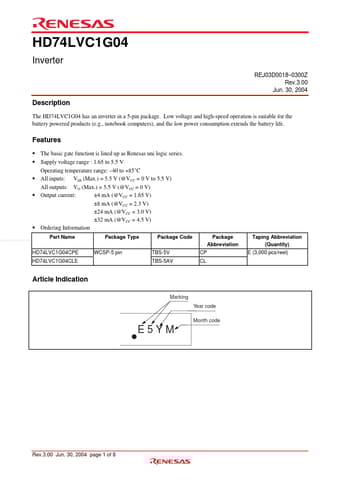

Datasheet preview – HD74LVC1G04
