HD74LVC16240A - 16-bit Buffers / Line Drivers with 3-state Outputs

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

HD74LVC16240A 16-bit Buffers / Line Drivers with 3-state Outputs by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74LVC16240A

Datasheet Details

Part number	HD74LVC16240A
Manufacturer	Hitachi Semiconductor
File Size	51.80 KB
Description	16-bit Buffers / Line Drivers with 3-state Outputs
Datasheet	HD74LVC16240A Datasheet
Additional preview pages of the HD74LVC16240A datasheet.

Product details

Description

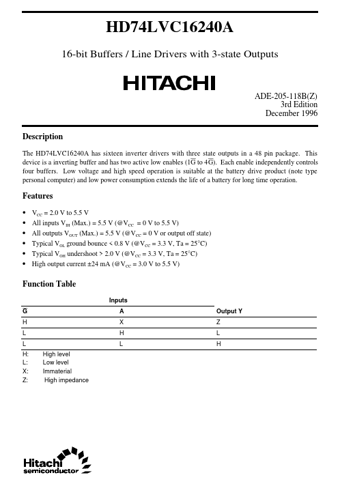

The HD74LVC16240A has sixteen inverter drivers with three state outputs in a 48 pin package.

Features

VCC = 2.0 V to 5.5 V All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VOUT (Max. ) = 5.5 V (@VCC = 0 V or output off state) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C) High output current ±24 mA (@VCC = 3.0 V to 5.5 V) Function Table Inputs G H L L H: L: X: Z: High level Low level Immaterial High impedance A X H L Output Y Z L H HD74LVC16240A Pin Ar.
