HD74LVC16374A - 16-bit D-type Flip Flops with 3-state Outputs

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

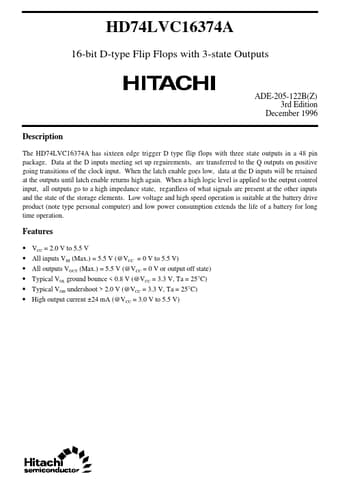

HD74LVC16374A 16-bit D-type Flip Flops with 3-state Outputs by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74LVC16374A

Datasheet Details

Part number	HD74LVC16374A
Manufacturer	Hitachi Semiconductor
File Size	53.29 KB
Description	16-bit D-type Flip Flops with 3-state Outputs
Datasheet	HD74LVC16374A Datasheet
Additional preview pages of the HD74LVC16374A datasheet.

Product details

Description

The HD74LVC16374A has sixteen edge trigger D type flip flops with three state outputs in a 48 pin package.

Features

VCC = 2.0 V to 5.5 V All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VOUT (Max. ) = 5.5 V (@VCC = 0 V or output off state) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C) High output current ±24 mA (@VCC = 3.0 V to 5.5 V) HD74LVC16374A Function Table Inputs G H L L L H: L: X: Z: ↑: Q0: CK X ↑ ↑ L D X L H X Output Q Z L H Q0 High level Low level Immater.
