HD74LVC139 Datasheet, Demultiplexers, Renesas

✔ HD74LVC139 Features

VCC = 2.0 V to 5.5 V
All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
Typical VOH undershoot >

PDF File Details

Renesas manufacturer logo

Part number:

HD74LVC139

Manufacturer:

Renesas ↗

File Size:

171.31kb

Download:

📄 Datasheet

Description:

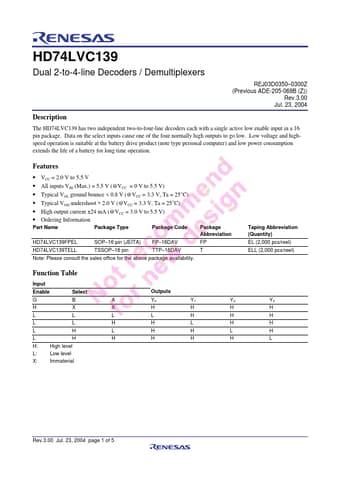

Dual 2-to-4-line decoders / demultiplexers. The HD74LVC139 has two independent two-to-four-line decoders each with a single active low enable input in a 16 pin package. Data on
