HD74LVC08 Datasheet, Gates, Hitachi Semiconductor

HD74LVC08 Features

• Gates
• VCC = 2.0 V to 5.5 V All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Ty

PDF File Details

Part number:

HD74LVC08

Manufacturer:

Hitachi Semiconductor

File Size:

35.01kb

Download:

📄 Datasheet

Description:

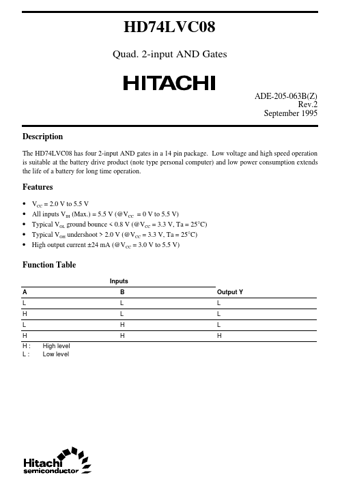

Quad. 2-input and gates. The HD74LVC08 has four 2-input AND gates in a 14 pin package. Low voltage and high speed operation is suitable at the battery drive p
