HN58X2464, HN58X2402, EEPROM

www.DataSheet4U.com HN58X2402/HN58X2404/HN58X2408 HN58X2416/HN58X2432/HN58X2464 Two-wire serial interface 2k EEPROM (256-word × 8-bit) 4k EEPROM (512.
HN58X24xx series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM).

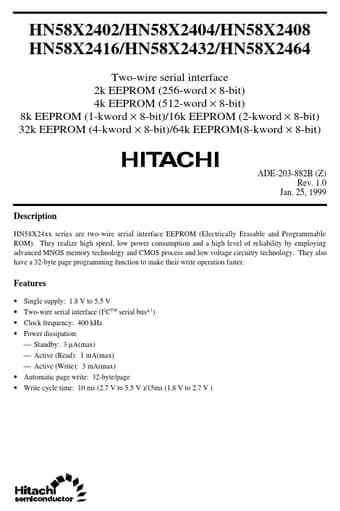

datasheet Preview Page 1 from Datasheet4u.com

HN58X2402_HitachiSemiconductor.pdf

HN58X2464 Datasheet Preview — This datasheet PDF includes multiple part numbers: HN58X2464, HN58X2402. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HN58X2464, HN58X2402

Manufacturer:

Hitachi Semiconductor

File Size:

114.19 KB

Description:

EEPROM

Note:

This datasheet PDF includes multiple part numbers: HN58X2464, HN58X2402.
Please refer to the document for exact specifications by model.

Features

* Single supply: 1.8 V to 5.5 V Two-wire serial interface (I2CTM serial bus
* 1) Clock frequency: 400 kHz Power dissipation:  Standby: 3 µA(max)  Active (Read): 1 mA(max)  Active (Write): 3 mA(max)
* Automatic page write: 32-byte/page
* Write cycle time: 10 ms (2.7 V to 5.5 V )/1
