K3140 - 2SK3140

Datasheet Summary

Features

  • Low on-resistance R DS(on) = 6 mΩ typ.
  • Low drive current.
  • 4 V gate drive device can be driven from 5 V source Outline TO.
  • 220CFM D G 1 2 3 S 1. Gate 2. Drain 3. Source http://www. Datasheet4U. com 2SK3140 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperatu.

📥 Download Datasheet

Datasheet preview – K3140

Datasheet Details

Part number K3140
Manufacturer Hitachi Semiconductor
File Size 139.05 KB
Description 2SK3140
Datasheet download datasheet K3140 Datasheet
Additional preview pages of the K3140 datasheet.

📁 Similar Datasheet

  • K3141 - Silicon N-Channel MOS FET (Renesas)
  • K3148 - N-Channel MOSFET (VBsemi)
  • K3100G - 3.3V Crystal Clock Oscillators (Champion)
  • K3102-01R - 2SK3102-01R (Fuji Semiconductors)
  • K3113 - 2SK3113 (NEC)
  • K3114 - 2SK3114 (NEC)
  • K3115 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • K3115B - N-CHANNEL POWER MOSFET (Renesas)
  • K3116 - 2SK3116 (NEC)
  • K3126 - 2SK3126 (Toshiba Semiconductor)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

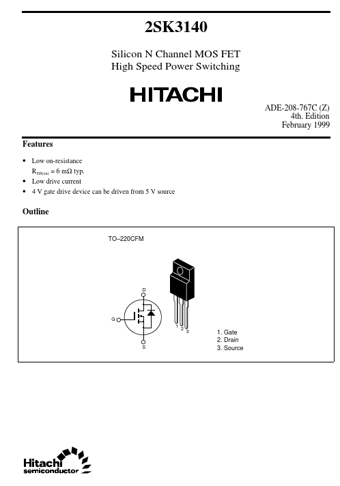

2SK3140 Silicon N Channel MOS FET High Speed Power Switching ADE-208-767C (Z) 4th. Edition February 1999 Features • Low on-resistance R DS(on) = 6 mΩ typ. • Low drive current • 4 V gate drive device can be driven from 5 V source Outline TO–220CFM D G 1 2 3 S 1. Gate 2. Drain 3. Source http://www.Datasheet4U.com 2SK3140 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VDSS VGSS ID I D(pulse) I DR I AP EAR Note 3 Note 3 Note 1 Ratings 60 ±20 60 240 60 50 214 35 150 –55 to +150 Unit V V A A A A mJ W °C °C Pch Note 2 Tch Tstg 1. PW ≤ 10 µs, duty cycle ≤ 1% 2.
