K3152 - Silicon N-Channel MOSFET

Datasheet Summary

Features

  • Low on-resistance R DS = 100 mΩ typ.
  • High speed switching.
  • 4 V gate drive device can be driven from 5 V source Outline TO.
  • 220FM D G 1 2 S 1. Gate 2. Drain 3. Source 3 2SK3152 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VDSS VGSS ID.

📥 Download Datasheet

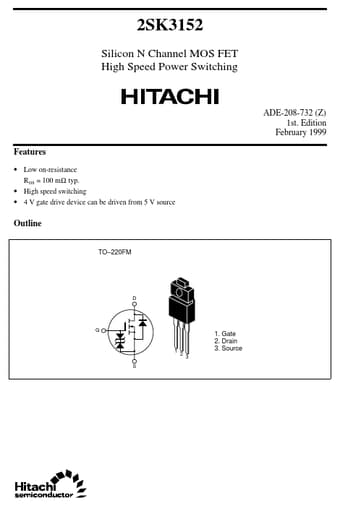

Datasheet preview – K3152

Datasheet Details

Part number K3152
Manufacturer Hitachi Semiconductor
File Size 50.66 KB
Description Silicon N-Channel MOSFET
Datasheet download datasheet K3152 Datasheet
Additional preview pages of the K3152 datasheet.

📁 Similar Datasheet

  • K315 - N-Channel Junction Silicon FET (Sanyo Semiconductor Corporation)
  • K3151 - Silicon N-Channel MOSFET (Renesas Technology)
  • K3155 - Silicon N-Channel MOSFET (Renesas)
  • K3100G - 3.3V Crystal Clock Oscillators (Champion)
  • K3102-01R - 2SK3102-01R (Fuji Semiconductors)
  • K3113 - 2SK3113 (NEC)
  • K3114 - 2SK3114 (NEC)
  • K3115 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • K3115B - N-CHANNEL POWER MOSFET (Renesas)
  • K3116 - 2SK3116 (NEC)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text
2SK3152 Silicon N Channel MOS FET High Speed Power Switching ADE-208-732 (Z) 1st. Edition February 1999 Features • Low on-resistance R DS = 100 mΩ typ. • High speed switching • 4 V gate drive device can be driven from 5 V source Outline TO–220FM D G 1 2 S 1. Gate 2. Drain 3. Source 3 2SK3152 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VDSS VGSS ID I D(pulse) I DR I AP Note3 Note3 Note2 Note1 Ratings 120 ±20 10 40 10 10 8.5 25 150 –55 to +150 Unit V V A A A A mJ W °C °C EAR Pch Tch Tstg 1. PW ≤ 10 µs, duty cycle ≤ 1% 2. Value at Tc = 25°C 3.
