K315 - N-Channel Junction Silicon FET

Datasheet Summary

Features

  • Ideal for FM tuners in radios, stereos, etc.
  • Because it is compactly packaged, sets can be made compact.
  • Small Crss (Crss=0.08pF typ).
  • High yfs (yfs=12.0ms typ). Package Dimensions unit:mm 2040A [2SK315] 4.0 2.2 0.4 0.5 0.6 0.4 1.8 15.0 3.0 0.4 1 2 1.3 3 1.3 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Gate-to-Drain Voltage Gate Current Drain Current Allowable Power Dissipation Junction Temperature Storage Temperature Symbol VGDO IG ID PD Tj Tst.

📥 Download Datasheet

Datasheet preview – K315

Datasheet Details

Part number K315
Manufacturer Sanyo Semiconductor Corporation
File Size 206.41 KB
Description N-Channel Junction Silicon FET
Datasheet download datasheet K315 Datasheet
Additional preview pages of the K315 datasheet.

📁 Similar Datasheet

  • K3150 - Silicon N-Channel MOSFET (Hitachi Semiconductor)
  • K3151 - Silicon N-Channel MOSFET (Renesas Technology)
  • K3152 - Silicon N-Channel MOSFET (Hitachi Semiconductor)
  • K3155 - Silicon N-Channel MOSFET (Renesas)
  • K3155 - Silicon N-Channel MOSFET (Hitachi Semiconductor)
  • K3100G - 3.3V Crystal Clock Oscillators (Champion)
  • K3102-01R - 2SK3102-01R (Fuji Semiconductors)
  • K3113 - 2SK3113 (NEC)
  • K3114 - 2SK3114 (NEC)
  • K3115 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
Other Datasheets by Sanyo Semiconductor Corporation

    Full PDF Text Transcription

    Click to expand full text

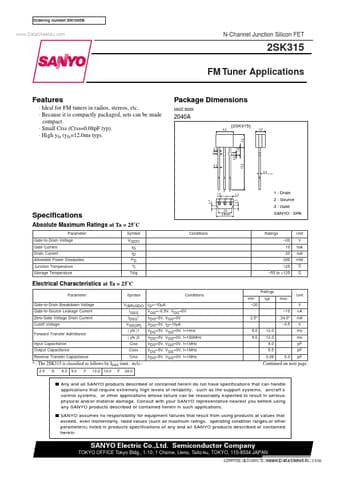

    Ordering number:EN1005B www.DataSheet4U.com N-Channel Junction Silicon FET 2SK315 FM Tuner Applications Features · Ideal for FM tuners in radios, stereos, etc. · Because it is compactly packaged, sets can be made compact. · Small Crss (Crss=0.08pF typ). · High yfs (yfs=12.0ms typ). Package Dimensions unit:mm 2040A [2SK315] 4.0 2.2 0.4 0.5 0.6 0.4 1.8 15.0 3.0 0.4 1 2 1.3 3 1.3 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Gate-to-Drain Voltage Gate Current Drain Current Allowable Power Dissipation Junction Temperature Storage Temperature Symbol VGDO IG ID PD Tj Tstg Conditions 3.0 3.8nom 1 : Drain 2 : Source 3 : Gate SANYO : SPA 0.7 0.
