K3148 - 2SK3148

Datasheet Summary

Features

  • Low on-resistance R DS = 45 mΩ typ.
  • High speed switching.
  • 4 V gate drive device can be driven from 5 V source Outline TO.
  • 220FM D G 1 2 S 1. Gate 2. Drain 3. Source 3 2SK3148 www. DataSheet4U. com Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note:.

📥 Download Datasheet

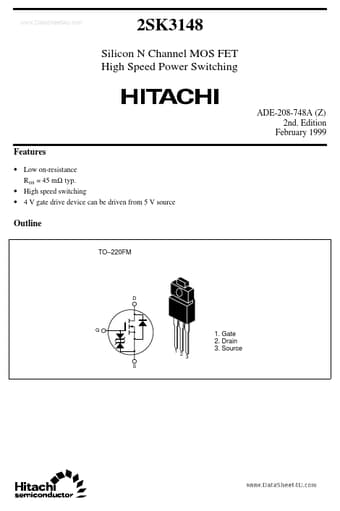

Datasheet preview – K3148
