2SB648 Datasheet - Hitachi

2SB648 Silicon PNP Transistor

2SB648, 2SB648A Silicon PNP Epitaxial Application Low frequency high voltage amplifier complementary pair with 2SD668/A Outline TO-126 MOD 1 2 1. Emitter 2. Collector 3. Base 3 Absolute Maximum Ratings (Ta = 25°C) Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IC(peak) PC Tj Tstg 2SB648 180 120.

2SB648-Hitachi.pdf

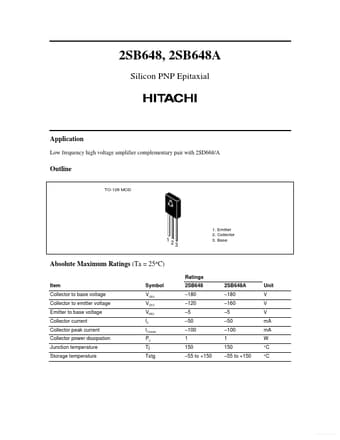

Preview of 2SB648 PDF
2SB648 Datasheet Preview Page 2 2SB648 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB648

Manufacturer:

Hitachi

File Size:

47.13 KB

Description:

Silicon pnp transistor.
