2SK2330L, 2SK2330 Datasheet - Hitachi

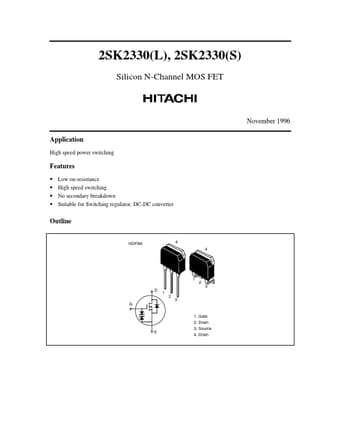

2SK2330L Silicon N-Channel MOS FET

2SK2330L Features

* Low on-resistance

* High speed switching

* No secondary breakdown

* Suitable for Switching regulator, DC-DC converter Outline HDPAK 4 4 1 2 3 D1 2 3 G 1. Gate 2. Drain 3. Source S 4. Drain November 1996 2SK2330(L), 2SK2330(S) Absolute Maximum Ratings (Ta = 25

2SK2330-Hitachi.pdf

2SK2330L Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SK2330L, 2SK2330. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2SK2330L, 2SK2330

Manufacturer:

Hitachi

File Size:

24.67 KB

Description:

Silicon n-channel mos fet.

Note:

This datasheet PDF includes multiple part numbers: 2SK2330L, 2SK2330.
Please refer to the document for exact specifications by model.
