2SK2334L - Silicon N-Channel MOSFET

Product Overview

Hitachi

📥 Download Datasheet

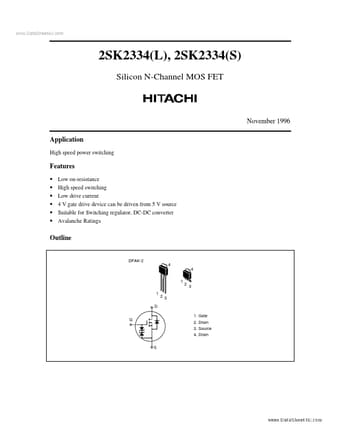

2SK2334L Silicon N-Channel MOSFET by Hitachi - Datasheet Preview — Datasheet preview – 2SK2334L

Datasheet Details

Part number	2SK2334L
Manufacturer	Hitachi
File Size	85.65 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2334L Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SK2334L, 2SK2334. Please refer to the document for exact specifications by model.
Additional preview pages of the 2SK2334L datasheet.

Product details

Features

Low on-resistance.
High speed switching.
Low drive current.
4 V gate drive device can be driven from 5 V source.
Suitable for Switching regulator, DC-DC converter.
Avalanche Ratings Outline DPAK-2 4 4 1 23 D 12 3 1. Gate G 2. Drain 3. Source 4. Drain S November 1996 www. DataSheet4U. com 2SK2334(L), 2SK2334(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Bod.
