HT45F0V - A/D Flash Type 8-Bit MCU

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT45F0V A/D Flash Type 8-Bit MCU by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT45F0V

Datasheet Details

Part number	HT45F0V
Manufacturer	Holtek Semiconductor
File Size	547.28 KB
Description	A/D Flash Type 8-Bit MCU
Datasheet	HT45F0V Datasheet

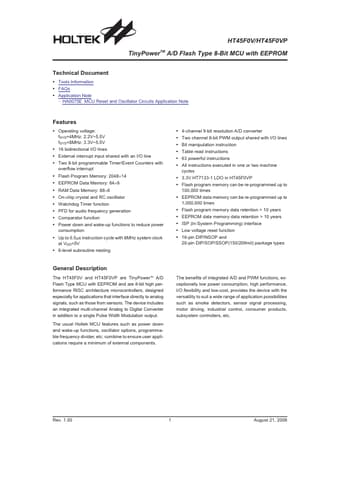

Additional preview pages of the HT45F0V datasheet.

Product details

Features

Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V.
16 bidirectional I/O lines.
External interrupt input shared with an I/O line.
Two 8-bit programmable Timer/Event Counters with overflow interrupt.
Flash Program Memory: 2048´14.
EEPROM Data Memory: 64´8.
RAM Data Memory: 88´8.
On-chip crystal and RC oscillator.
Watchdog Timer function.
PFD for audio frequency generation.
Comparator function.
Power down and wake-up functions.
