HT45R22E - Remote Type 8-bit OTP MCU

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT45R22E Remote Type 8-bit OTP MCU by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT45R22E

Datasheet Details

Part number	HT45R22E
Manufacturer	Holtek Semiconductor
File Size	525.87 KB
Description	Remote Type 8-bit OTP MCU
Datasheet	HT45R22E Datasheet

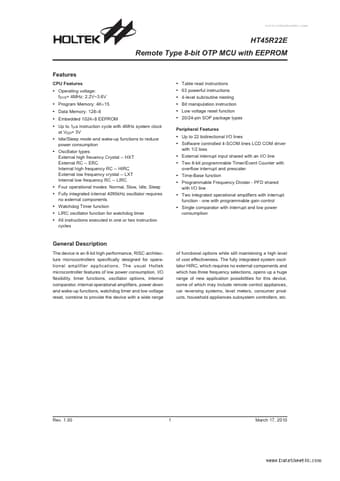

Additional preview pages of the HT45R22E datasheet.

Product details

Description

The device is an 8-bit high performance, RISC architecture microcontrollers specifically designed for operational amplifier applications.

Features

CPU Features.
Operating voltage:.
Table read instructions.
63 powerful instructions.
4-level subroutine nesting.
Bit manipulation instruction.
Low voltage reset function.
20/24-pin SOP package types fSYS= 4MHz: 2.2V~3.6V.
Program Memory: 4K´15.
Data Memory: 128´8.
Embedded 1024´8 EEPROM.
Up to 1ms instruction cycle with 4MHz system clock at VDD= 3V.
Idle/Sleep mode and wake-up functions to reduce Peripheral Features.
Up to 22 bi.
