HT45R0072 - I/O 8-Bit MCU

HT45R0072 Description

HT45R0072 I/O 8-Bit MCU with USB Interface .

HT45R0072 Features

* Operating voltage: fSYS=6M/12MHz: 3.6V~5.5V (VBUS)
* Low voltage reset function
* 34 bidirectional I/O lines (max. )
* 8-bit programmable timer/event counter with overflow interrupt
* 16-bit programmable timer/event counter with overflow interrupt
* Watchdog Timer
* PS2

HT45R0072 Applications

* Fully integrated 6MHz or 12MHz oscillator
* All I/O pins have wake-up functions

📥 Download Datasheet

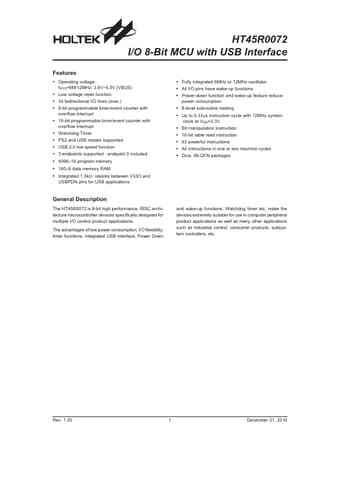

Preview of HT45R0072 PDF
datasheet Preview Page 2 datasheet Preview Page 3
