HT73H21 - 40V 250mA LDO

Holtek Semiconductor

📥 Download Datasheet

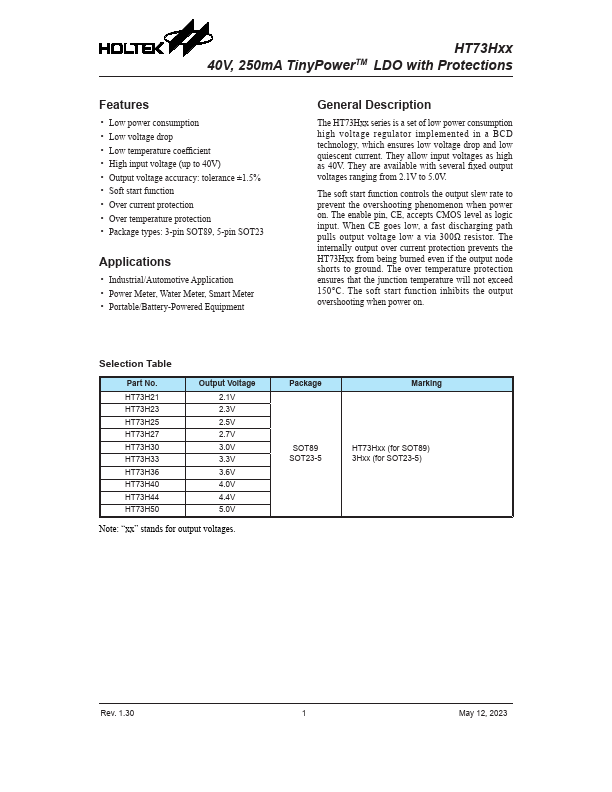

HT73H21 Datasheet Preview — Preview of HT73H21 PDF

Datasheet Details

Part number: HT73H21
Manufacturer: Holtek Semiconductor
File Size: 2.96 MB
Datasheet: HT73H21-HoltekSemiconductor.pdf
Description: 40V 250mA LDO

HT73H21 Product details

Description

The HT73Hxx series is a set of low power consumption high voltage regulator implemented in a BCD technology, which ensures low voltage drop and low quiescent current..

Features

Low power consumption.
Low voltage drop.
Low temperature coefficient.
High input voltage (up to 40V).
Output voltage accuracy: tolerance ±1.5%.
Soft start function.
Over current protection.
Over temperature protection.
Package types: 3-pin SOT89, 5-pin SOT23.
