HT73H36, HT73H21 - 40V 250mA LDO

Holtek Semiconductor

📥 Download Datasheet

HT73H36 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT73H36, HT73H21. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: HT73H36, HT73H21
Manufacturer: Holtek Semiconductor
File Size: 2.96 MB
Datasheet: HT73H21-HoltekSemiconductor.pdf
Description: 40V 250mA LDO
Note: This datasheet PDF includes multiple part numbers: HT73H36, HT73H21.
Please refer to the document for exact specifications by model.

HT73H36 Product details

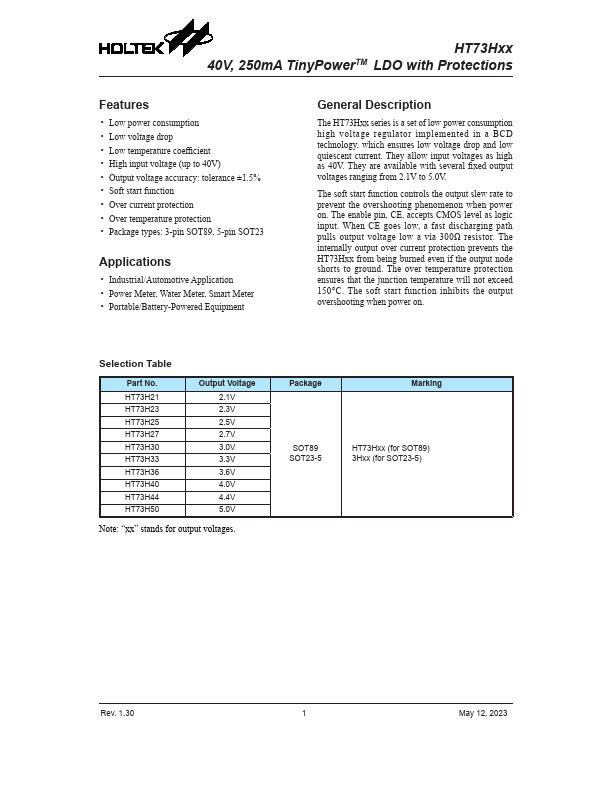

Description

The HT73Hxx series is a set of low power consumption high voltage regulator implemented in a BCD technology, which ensures low voltage drop and low quiescent current..

Features

Low power consumption.
Low voltage drop.
Low temperature coefficient.
High input voltage (up to 40V).
Output voltage accuracy: tolerance ±1.5%.
Soft start function.
Over current protection.
Over temperature protection.
Package types: 3-pin SOT89, 5-pin SOT23.
