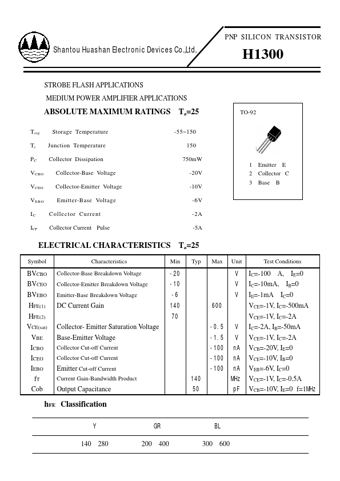

H1300 - PNP SILICON TRANSISTOR
Shantou Huashan Electronic Devices Co.,Ltd.
PNP SILICON TRANSISTOR H1300 STROBE FLASH APPLICATIONS MEDIUM POWER AMPLIFIER APPLICATIONS ABSOLUTE MAXIMUM RATINGS Ta=25 TO-92 Tstg Storage Temperature Tj Junction Temperature PC Collector Dissipation VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current ICP Collector Current Pulse -55~150 150 750mW -20V -10V -6V -2A -5A 1 Emitter E 2 Collector C 3 Base B ELECTRICAL CHARACTERISTICS Ta=25 Symb
