H13002 Datasheet - Shantou Huashan Electronic

H13002 NPN Silicon Transistor

Shantou Huashan Electronic Devices Co.,Ltd. NPN SILICON TRANSISTOR H13002 HIGH VOLTAGE SWITCH MODE APPLICICATIONS High Speed Switching Suitable for Switching Regulator and Montor Control ABSOLUTE MAXIMUM RATINGS（Ta=25℃） Tstg Storage Temperature………………………… -65~150℃ Tj Junction Temperature…………………………………150℃ PC Collector Dissipation…………………………………30W VCBO Collector-Base Voltage………………………………600V VCEO Coll.

H13002-ShantouHuashanElectronic.pdf

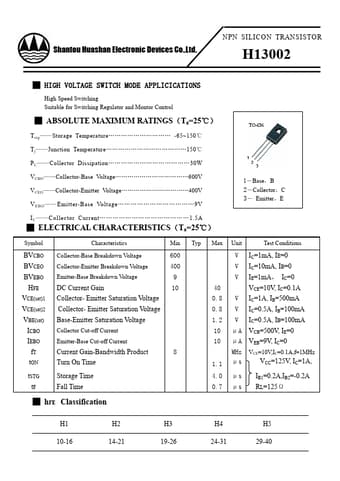

Preview of H13002 PDF

Datasheet Details

Part number:

H13002

Manufacturer:

Shantou Huashan Electronic

File Size:

112.08 KB

Description:

Npn silicon transistor.
