HGP029NE4SL - 45V N-Ch Power MOSFET

Hunteck

Datasheet Details

Part number	HGP029NE4SL
Manufacturer	Hunteck
File Size	764.10 KB
Description	45V N-Ch Power MOSFET
Datasheet	HGP029NE4SL Datasheet
Additional preview pages of the HGP029NE4SL datasheet.

📁 Similar Datasheet

HGP022N04A-G - Silicon N-Channel Power MOSFET (CR Micro)
HGP022N04B-G - Silicon N-Channel Power MOSFET (CR Micro)
HGP026N03A - Silicon N-Channel Power MOSFET (CR Micro)
HGP028N03A - Silicon N-Channel Power MOSFET (CR Micro)
HGP028N04A - Silicon N-Channel Power MOSFET (CR Micro)
HGP017N03A-G - Silicon N-Channel Power MOSFET (CR Micro)
HGP065NE4A - Silicon N-Channel Power MOSFET (CR Micro)

Other Datasheets by Hunteck

HGP029N06SL - 60V N-Ch Power MOSFET
HGP020NE4S - 45V N-Ch Power MOSFET
HGP035N08AL - 80V N-Ch Power MOSFET
HGP037N10S - 100V N-Ch Power MOSFET
HGP042N10A - 100V N-Ch Power MOSFET
HGP045N10S - 100V N-Ch Power MOSFET
HGP045NE4SL - 45V N-Ch Power MOSFET
HGP049N10S - 100V N-Ch Power MOSFET

Full PDF Text Transcription

Click to expand full text

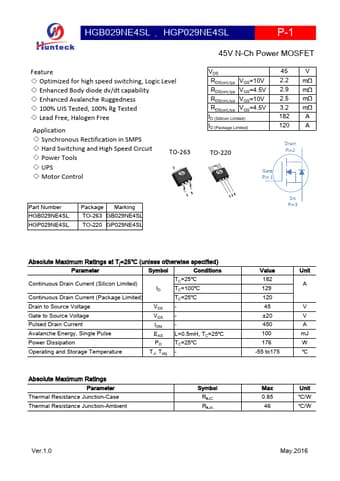

HGB029NE4SL , HGP029NE4SL P-1 45V N-Ch Power MOSFET Feature ◇ Optimized for high speed switching, Logic Level ◇ Enhanced Body diode dv/dt capability ◇ Enhanced Avalanche Ruggedness ◇ 100% UIS Tested, 100% Rg Tested ◇ Lead Free, Halogen Free Application ◇ Synchronous Rectification in SMPS ◇ Hard Switching and High Speed Circuit ◇ Power Tools ◇ UPS ◇ Motor Control TO-263 VDS RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V ID (Sillicon Limited) ID (Package Limited) TO-220 45 V 2.2 mΩ 2.9 mΩ 2.5 mΩ 3.

Published: Apr 2, 2019 |
