HY5DU281622LT-H, HY5DU281622, 4 Banks x 2M x 16Bit Double Data Rate SDRAM

HY5DU281622 4 Banks x 2M x 16Bit Double Data Rate SDRAM PRELIMINARY .
The Hyundai HY5DU281622 is a 134,217,728-bit CMOS Double Data Rate(DDR) Synchronous DRAM, ideally suited for the main memory applications which requir.

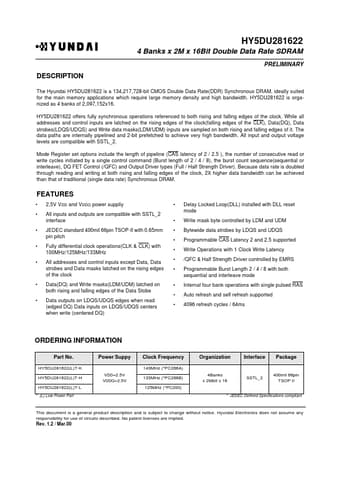

datasheet Preview Page 1 from Datasheet4u.com

HY5DU281622-Hyundai.pdf

HY5DU281622LT-H Datasheet Preview — This datasheet PDF includes multiple part numbers: HY5DU281622LT-H, HY5DU281622. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HY5DU281622LT-H, HY5DU281622

Manufacturer:

Hyundai

File Size:

83.14 KB

Description:

4 Banks x 2M x 16Bit Double Data Rate SDRAM

Note:

This datasheet PDF includes multiple part numbers: HY5DU281622LT-H, HY5DU281622.
Please refer to the document for exact specifications by model.

Features

* 2.5V V DD and VDDQ power suppliy All inputs and outputs are compatible with SSTL_2 interface JEDEC standard 400mil 66pin TSOP-II with 0.65mm pin pitch Fully differential clock operations(CLK & CLK) with 100MHz/125MHz/133MHz All addresses and control

Applications

* which require large memory density and high bandwidth. HY5DU281622 is organized as 4 banks of 2,097,152x16. HY5DU281622 offers fully synchronous operations referenced to both rising and falling edges of the clock. While all addresses and control inputs are latched on the rising edges of the clock(fa
