HY5DU281622LT-L - 4 Banks x 2M x 16Bit Double Data Rate SDRAM

Product Overview

Hyundai

Datasheet Details

Part number	HY5DU281622LT-L
Manufacturer	Hyundai
File Size	83.14 KB
Description	4 Banks x 2M x 16Bit Double Data Rate SDRAM
Datasheet	HY5DU281622LT-L Datasheet
Note	This datasheet PDF includes multiple part numbers: HY5DU281622LT-L, HY5DU281622. Please refer to the document for exact specifications by model.

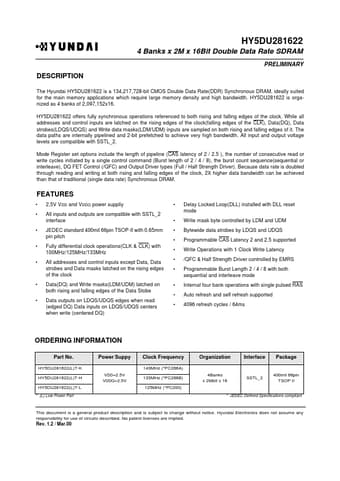

Additional preview pages of the HY5DU281622LT-L datasheet.

Product details

Description

The Hyundai HY5DU281622 is a 134,217,728-bit CMOS Double Data Rate(DDR) Synchronous DRAM, ideally suited for the main memory applications which require large memory density and high bandwidth.

Features

2.5V V DD and VDDQ power suppliy All inputs and outputs are compatible with SSTL_2 interface JEDEC standard 400mil 66pin TSOP-II with 0.65mm pin pitch Fully differential clock operations(CLK & CLK) with 100MHz/125MHz/133MHz All addresses and control inputs except Data, Data strobes and Data masks latched on the rising edges of the clock Data(DQ) and Write masks(LDM/UDM) latched on both rising and falling edges of the Data Stobe Data outputs on LD.
