ICP0349P

2.7 - 3.5GHz 70W GaN PA MMIC

ICP0349P Features

* Frequency Range: 2.7-3.5GHz

* Pout: 48 dBm @ 24dBm Pin

* PAE: 60 %

* Small Signal Gain: 26.5dB

* Bias: VD=28V IDQ=200mA

* Technology: GaN on SiC

* Lead-free and RoHS compliant

* Package Dimensions: 7.0 x 7.0 x 0.85 mm Applications Im

ICP0349P General Description

ICONICRF’s ICP0349 is a 2 stage power amplifier, 50 ohm matched with integrated DC blocking capacitors packaged in a plastic QFN. Fabricated using a GaN on SiC process, ICP0349P operates from 2.7-3.5GHz with over 48dBm output power and 60% PAE. ICP0349 is well suited to both commercial and defense r.

ICP0349P Datasheet (4.61 MB)

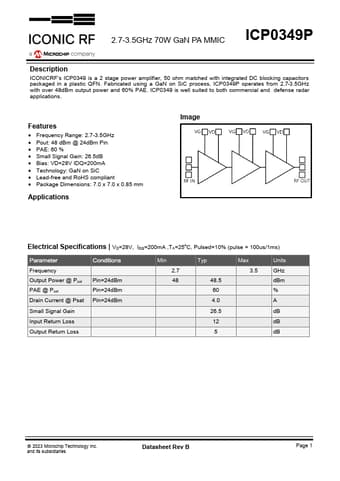

Preview of ICP0349P PDF

Datasheet Details

Part number:

ICP0349P

Manufacturer:

ICONIC RF

File Size:

4.61 MB

Description:

2.7 - 3.5ghz 70w gan pa mmic.
