ICPB1010 Datasheet - ICONIC RF

ICPB1010 - Discrete Power GaN HEMT

The ICPB1010 is a GaN on SiC discrete HEMT that operates from DC-14GHz.

The design is optimized for power and efficiency using field plate technology.

RF Performance | Simulated Conditions unless otherwise stated | TA=25°C, VD=28V, Pulse width =100uS, Duty cycle = 10% Frequency GHz 3 Typical 6

ICPB1010 Features

* Frequency Range DC-14GHz

* 48.5dBm Nominal P3dB Pulsed

* Maximum PAE at 6GHz of 72%

* 17.8dB Linear Gain at 6GHz

* Drain Bias 28V

* Technology: GaN on SiC

* Lead-free and RoHS compliant

* Chip Dimensions: 0.824 x 2.495 x 0.10mm Applic

ICPB1010-ICONICRF.pdf

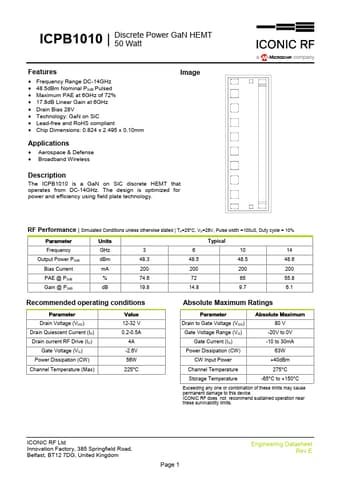

Preview of ICPB1010 PDF
