IDT709079S HIGH-SPEED 32K x 8 SYNCHRONOUS DUAL-PORT STATIC RAM

The IDT709079 is a high-speed 32K x 8 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude provided by thi.

IDT709079S Features

* True Dual-Ported memory cells which allow simultaneous access of the same memory location

* High-speed clock to data access

* Commercial: 9/12/15ns (max.)

* Industrial: 12ns (max.)

* Low-power operation

* IDT709079S Active: 950mW (typ.) Standby: 5mW (typ.)

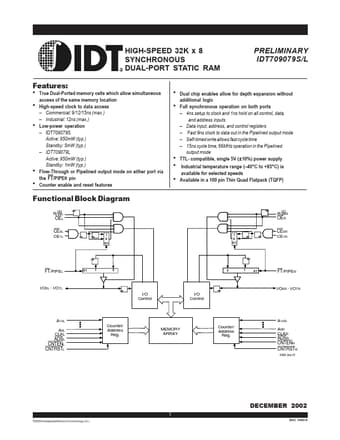

IDT709079L-IDT.pdf

IDT709079S Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT709079S, IDT709079L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT709079S, IDT709079L

Manufacturer:

IDT

File Size:

300.74 KB

Description:

High-speed 32k x 8 synchronous dual-port static ram.

Note:

This datasheet PDF includes multiple part numbers: IDT709079S, IDT709079L.
Please refer to the document for exact specifications by model.
