IDT7212L

12 x 12 Bit Parallel CMOS Multiplier

IDT7212L Features

* 12 x 12 parallel multiplier with double precision product

* High-speed - 30ns maximum clock to multiply time

* Low-power consumption - 150mW typical, less than 1/10th the power of compatible bipolar parts

* Produced with advanced CEMOS" high-performance technology

IDT7212L General Description

The IDT721211 DT7213 are high-speed, low power12x 12 multipliers ideal for fast, real-time digital signal processing applications. Utilization of a modified Booths algorith.

IDT7212L Datasheet (560.71 KB)

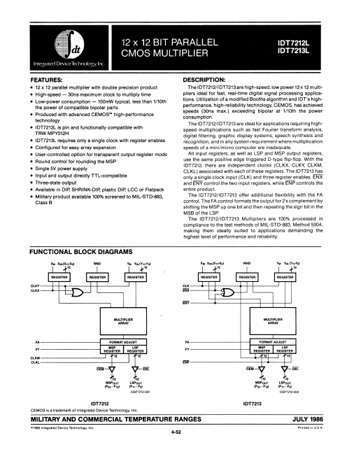

Preview of IDT7212L PDF

Datasheet Details

Part number:

IDT7212L

Manufacturer:

IDT

File Size:

560.71 KB

Description:

12 x 12 bit parallel cmos multiplier.
