IDT72115 Datasheet - Integrated Device Technology

IDT72115 CMOS PARALLEL-TO-SERIAL FIFO 256 x 16/ 512 x 16/ 1024 x 16

The IDT72105/72115/72125s are very high-speed, lowpower,dedicated, parallel-to-serial FIFOs. These FIFOs possess a 16-bit parallel input port and a serial output port with 256, 512 and 1K word depths, respectively. The ability to buffer wide word widths (x16) make these FIFOs ideal for laser printe.

IDT72115 Features

* 25ns parallel port access time, 35ns cycle time 45MHz serial output shift rate Wide x16 organization offering easy expansion Low power consumption (50mA typical) Least/Most Significant Bit first read selected

IDT72115_IntegratedDeviceTechnology.pdf

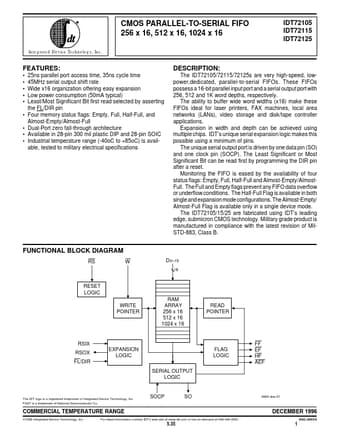

Preview of IDT72115 PDF
IDT72115 Datasheet Preview Page 2 IDT72115 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT72115

Manufacturer:

Integrated Device Technology

File Size:

179.52 KB

Description:

Cmos parallel-to-serial fifo 256 x 16/ 512 x 16/ 1024 x 16.
