IDT72104 Datasheet - Integrated Device Technology

IDT72104 CMOS PARALLEL-SERIAL FIFO

The IDT72103/72104 are high-speed Parallel-Serial FlFOs to be used with high-performance systems for functions such as serial communications, laser printer engine control and local area networks. A serial input, a serial output and two 9-bit parallel ports make four modes of data transfer possible:.

IDT72104 Features

* 35ns parallel port access time, 45ns cycle time

* 50MHz serial input/output frequency

* Serial-to-parallel, parallel-to-serial, serial-to-serial, and parallel-to-parallel operations

* Expandable in both depth and width with no external components

* Flexishi

IDT72104_IntegratedDeviceTechnology.pdf

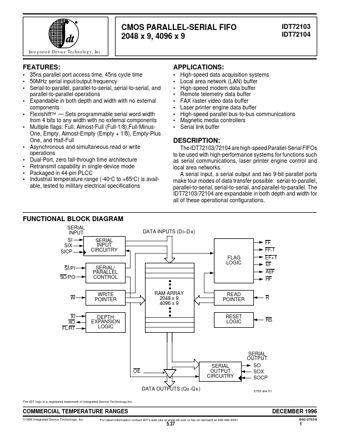

Preview of IDT72104 PDF
IDT72104 Datasheet Preview Page 2 IDT72104 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT72104

Manufacturer:

Integrated Device Technology

File Size:

314.13 KB

Description:

Cmos parallel-serial fifo.
