IDT72125 Datasheet, Fifo, Integrated Device Technology

IDT72125 Features

  • Fifo
  • 25ns parallel port access time, 35ns cycle time
  • 50MHz serial shift frequency
  • Wide x16 organization offering easy expansion
  • Low power consumption

PDF File Details

Part number:

IDT72125

Manufacturer:

Integrated Device Technology

File Size:

234.25kb

Download:

📄 Datasheet

Description:

Cmos parallel-to-serial fifo. The IDT72125 is a high-speed, low- power, dedicated, parallel-to-serial FIFO. This FIFO features a 16-bit parallel input port and a

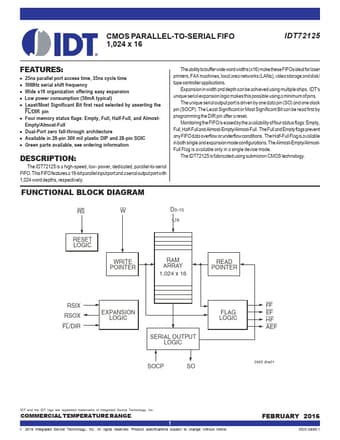

Datasheet Preview: IDT72125 📥 Download PDF (234.25kb)
Page 2 of IDT72125 Page 3 of IDT72125

IDT72125 Application

  • Applications Expansion in width and depth can be achieved using multiple chips. IDT’s unique serial expansion logic makes this possible using a min
