IDT72105

CMOS PARALLEL-TO-SERIAL FIFO

IDT72105 Features

* 25ns parallel port access time, 35ns cycle time 45MHz serial output shift rate Wide x16 organization offering easy expansion Low power consumption (50mA typical) Least/Most Significant Bit first read selected

IDT72105 General Description

The IDT72105/72115/72125s are very high-speed, lowpower,dedicated, parallel-to-serial FIFOs. These FIFOs possess a 16-bit parallel input port and a serial output port with 256, 512 and 1K word depths, respectively. The ability to buffer wide word widths (x16) make these FIFOs ideal for laser printe.

IDT72105 Datasheet (179.52 KB)

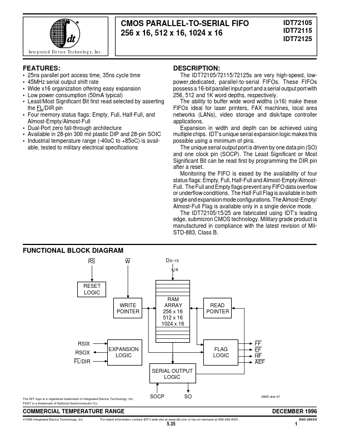

Preview of IDT72105 PDF

Datasheet Details

Part number:

IDT72105

Manufacturer:

Integrated Device Technology

File Size:

179.52 KB

Description:

Cmos parallel-to-serial fifo.
