IDT74AHCT139

High Speed CMOS Dual 1-of-4 Decoder

IDT74AHCT139 Features

* Equivalent to ALS speeds and output drive over full temperature and voltage supply extremes

* 9ns typical address to output delay

* IOL = 14mA over full military temperature range

* CMOS power levels (5p.W typo static)

* Both CMOS and TTL output compatible

IDT74AHCT139 General Description

The IDTS4174AHCT139 are dual 1-of-4 decoders built using advanced CEMOS'
*, a dual metal CMOS technology. The device has two independent decoders, each of which accept two binary weighed inputs (Ao-A 1) and provides four mutually exclusive active LOW outputs (0 0-0 3), Each decoder has an active.

IDT74AHCT139 Datasheet (169.53 KB)

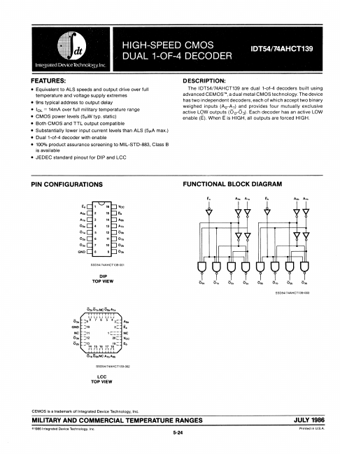

Preview of IDT74AHCT139 PDF

Datasheet Details

Part number:

IDT74AHCT139

Manufacturer:

IDT

File Size:

169.53 KB

Description:

High speed cmos dual 1-of-4 decoder.
