IDT8P34S1102I

1:2 LVDS Output 1.8V Fanout Buffer

IDT

IDT8P34S1102I Features

* Two low skew, low additive jitter LVDS output pairs

* One differential clock input pair

* Differential CLK, nCLK pairs can accept the following differential input levels: LVDS, CML

* Maximum input

IDT8P34S1102I General Description

The IDT8P34S1102I is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The IDT8P34S1102I is characterized to operate from a 1.8V power supply. Guaranteed output-to-output and part-to-part.

IDT8P34S1102I Datasheet (379.67 KB)

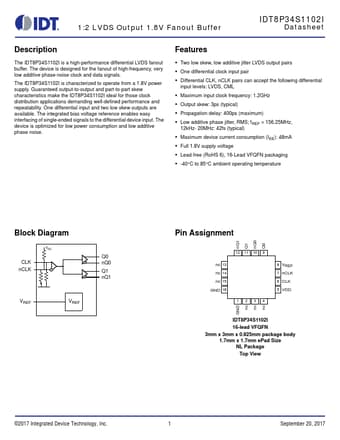

IDT8P34S1102I Datasheet Preview — Preview of IDT8P34S1102I PDF

Datasheet Details

Part number:

IDT8P34S1102I

Manufacturer:

IDT

File Size:

379.67 KB

Description:

1:2 lvds output 1.8v fanout buffer.
