IDT8P34S1212I - 1:12 LVDS Output 1.8V Fanout Buffer

IDT

📥 Download Datasheet

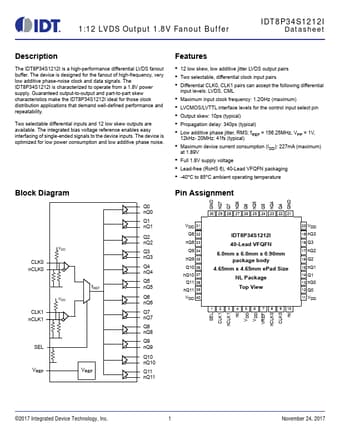

IDT8P34S1212I Datasheet Preview — Preview of IDT8P34S1212I PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT8P34S1212I
Manufacturer	IDT
File Size	534.77 KB
Description	1:12 LVDS Output 1.8V Fanout Buffer
Datasheet	IDT8P34S1212I-IDT.pdf

IDT8P34S1212I Product details

Description

The IDT8P34S1212I is a high-performance differential LVDS fanout buffer.

Features

12 low skew, low additive jitter LVDS output pairs.
Two selectable, differential clock input pairs.
Differential CLK0, CLK1 pairs can accept the following differential input levels: LVDS, CML.
Maximum input clock frequency: 1.2GHz (maximum).
LVCMOS/LVTTL interface levels for the control input select pin.
Output skew: 10ps (typical).
Propagation delay: 340ps (typical).
Low additive phase jitter, RMS; fREF = 156.25MHz, VPP =.
