IDT8P34S1208I Datasheet - Integrated Device

1:8 LVDS Output 1.8V Fanout Buffer

IDT8P34S1208I Features

* Eight low skew, low additive jitter LVDS output pairs Two selectable, differential clock input pairs Differential CLK, nCLK pairs can accept the following differential input levels: LVDS, CM

IDT8P34S1208I General Description

The IDT8P34S1208I is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The IDT8P34S1208I is characterized to operate from a 1.8V power supply. Guaranteed output-to-output and part-to-part.

IDT8P34S1208I Datasheet (252.16 KB)

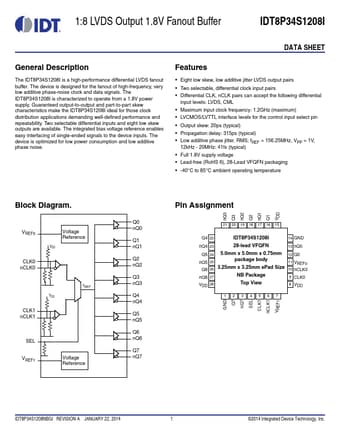

IDT8P34S1208I Datasheet Preview — Preview of IDT8P34S1208I PDF

Datasheet Details

Part number:

IDT8P34S1208I

Manufacturer:

Integrated Device

File Size:

252.16 KB

Description:

1:8 lvds output 1.8v fanout buffer.
